Computer Systems

Sensible Cinema Box Office for Windows





partner_terminals



Features

§  Computer built into base

§  Resistive Touch Display 15” TFT 1024x768

§  Customer Display (optional)

§  Credit Card Reader

§  Fanless 1GHz. Via Eden® Processor

§  80 GB Hard Disk

§  Compact Flash Slot

§  System RAM 512 MB DDR RAM

§  Supports up to 2GB RAM

§  WEPOS® (Windows Embedded Point-Of-Sale)

§  10/100/1GHz Ethernet Adapter

§  1 Year NBD On-Site + 2 Year Depot Warranty

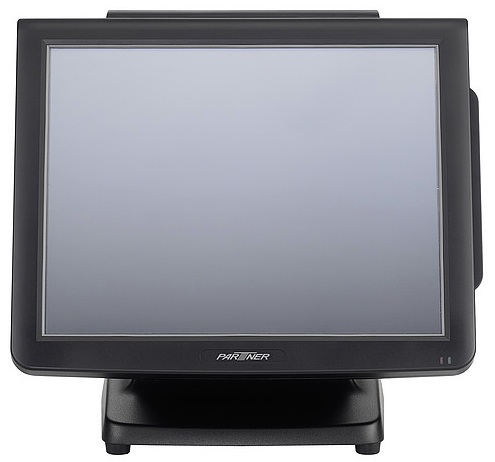

Partner Tech PT-5700

Touch-Screen Sales Terminal



All-In-One Sales Terminal

1 Year NBD Onsite Warranty + 2 Year Depot

Partner PT5700 Brochure (.pdf)





Ports

§  4 RS232 ports (supports 5V/12V)

§  1 Parallel Port

§  1 Ethernet 10/100/1GHz Base-T

§  1 PS/2 Keyboard Port

§  1 PS/2 Mouse Port

§  1 VGA Port (XGA/SVGA)

§  4 USB 2.0 Ports (2 in front)

§  1 Audio (speaker)

§  1 RJ-11 Cash drawer Port

On-site service plans available nationwide.
(Included in year #1 of 3 year warranty,
available for $199 per year thereafter)





Please Call for Pricing based on the

Configuration you need.












pt-6200 peripherals.jpg



Primary Features:

  • Intel Celeron-M 600 MHz CPU
  • System RAM 512 MB DDR2 (supports up to 1GB)
  • HDD Storage 3.5" HDD (80GB Min)
  • Solid State Drive Optional
  • Touch Screen 10.4" 5 Wire Resistive Touch
  • Magnetic Reader Track 1, 2 & 3
  • Power Supply 110/240VAC, 19VDC (90W)
  • WEPOS® (Windows Embedded Point-of-Sale)

FCC, CE Class A, UL, cUL, VCCI, BSI, ROHS

Dimensions WxDxH: 12.5" x 10" x 13.8"

Packaged: 18.5" x 16.1" x 17.7" Gross Weight 30 Lbs.



Options Expansion:

  • Mini PCI for wireless 802.11b
  • Type II Compact Flash (for O/S only)v
  • 2nd 80GB HDD
  • IC Card Reader
  • KB-32 key Keypad







PartnerTech PT-6200

Touch-Screen Sales Terminal



All-In-One Sales Terminal

1 Year NBD Onsite Warranty + 2 Year Depot

Partner PT6200 Brochure (.pdf)





Ports

  • 4 RS232 ports (supports 5V/12V)
  • 1 Parallel Port
  • 1 Ethernet 10/100/1000 Base-T
  • 1 PS/2 Keyboard Port
  • 1 PS/2 Mouse Port
  • 1 VGA Port (XGA/SVGA)
  • 2 USB 2.0 Ports(in front)
  • 2 USB 2.0 Ports(in rear)
  • 2 Audio (Line out / MIC in)
  • 1 RJ-11 (Cash drawers support)

Pole Display:

  • Number of Characters: 2x20
  • Character Type : 96 alphanumeric 13 international character sets and 1 user definable set

Printers:

  • Thermal line printing
  • Print Speed: 150 mm
  • Paper width: 80 mm +/-0.1
  • Character sets: 10 international character sets including Chinese, Korean, Japanese
  • Emulation: ESC/POS TM88III
  • Driver: OPOS/JPOS
  • Interface: RS-232, USB
  • Cash Drawer Interface



Please Call for Pricing based on the

Configuration you need.








Features

§  Mini-Tower Footprint

§  PentiumD Dual Core 1.6 GHz (3.20 GHz Total)

§  80 GB Hard Disk

§  System RAM 512 MB DDR RAM

§  Supports up to 2GB RAM

§  Windows XP Pro®

§  10/100/1GHz Ethernet Adapter

§  3 Year Basic NBD On-Site Warranty Service

§  CD-ROM Drive

§  Internal Business Speaker

§  PS/2 and Serial Port Add-In Card


Call for pricing based on your required configuration.

Price includes configuration with your Sensible Cinema Software purchased and peripherals such as ticket printers, cash drawers, customer displays, receipt printers and LED Displays.



Dell Optiplex 330

Manager Workstation / Server



3 Year Basic NBD On-Site Warranty

Ports:

1: - Stereo in, stereo out, microphone, (front) headphone

2: - RJ-45 network port

3: - 6 USB 2.0 ports, 2 front, 4 back

4: - 1 VGA port

5: - 1 parallel port

6: - 1 serial port

7: - 2 PS/2 Ports via Add-In Card



Optiplex 320




Features

§  Mini-Tower Footprint

§  PentiumD Dual Core 2.0 GHz (4.00 GHz Total)

§  160 GB SATA Hard Disk

§  System RAM 2.0 GB DDR2 SDRAM

§  Windows Vista Business®

§  10/100/1GHz Ethernet Adapter

§  3 Year Basic NBD On-Site Warranty Service

§  16X DVD-ROM Drive

§  Internal Business Speaker

§  PS/2 and Serial Port Add-In Card

§  Upgraded Video ATI Redeon X1300 128 MB DVI

Price includes configuration with your Sensible Cinema Software purchased and peripherals such as ticket printers, cash drawers, customer displays, receipt printers and LED Displays.


Dell Optiplex 330 Vista

Manager Workstation / Server



3 Year Basic NBD On-Site Warranty

Ports:

1: - Stereo in, stereo out, microphone, (front) headphone

2: - RJ-45 network port

3: - 6 USB 2.0 ports, 2 front, 4 back

4: - 1 VGA port (disabled)

5: - 1 parallel port

6: - 1 serial port

7: - 2 PS/2 Ports via Add-In Card (not shown)
8: - DVI Port via Add-In Card (not shown)



Optiplex 320
